Technical SpecificationsPrecision engineering.
Precision engineering.
Every detail.

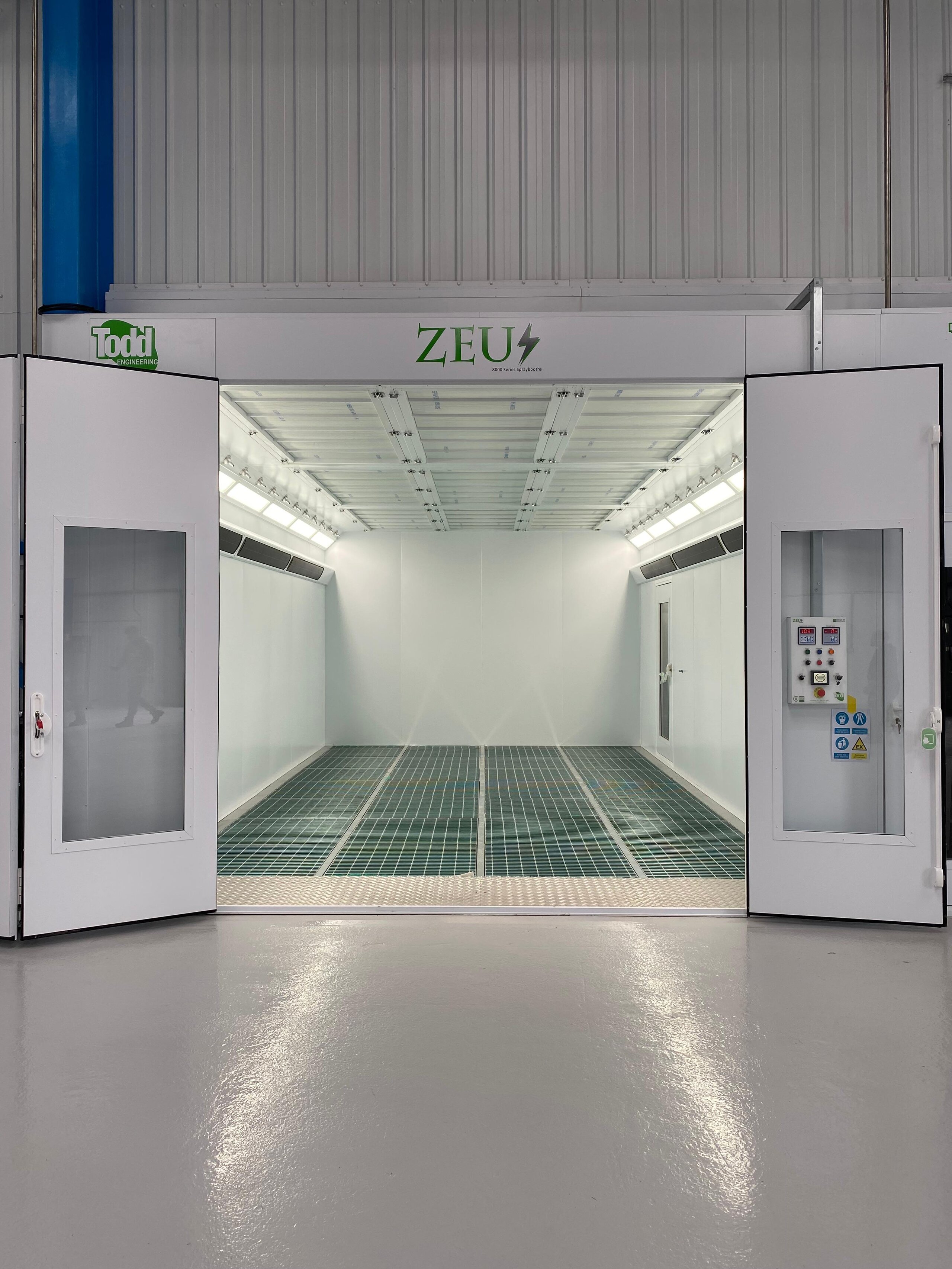

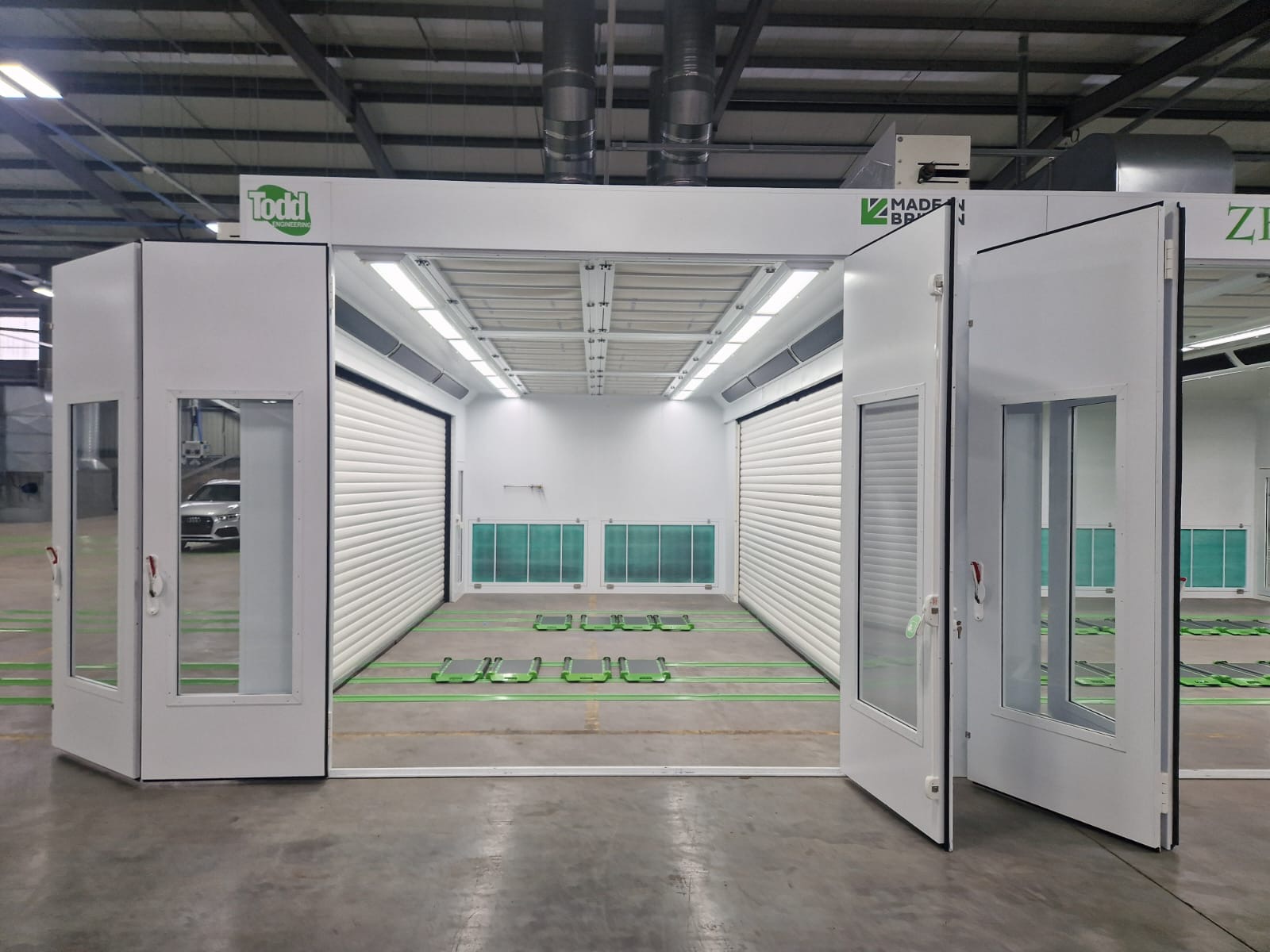

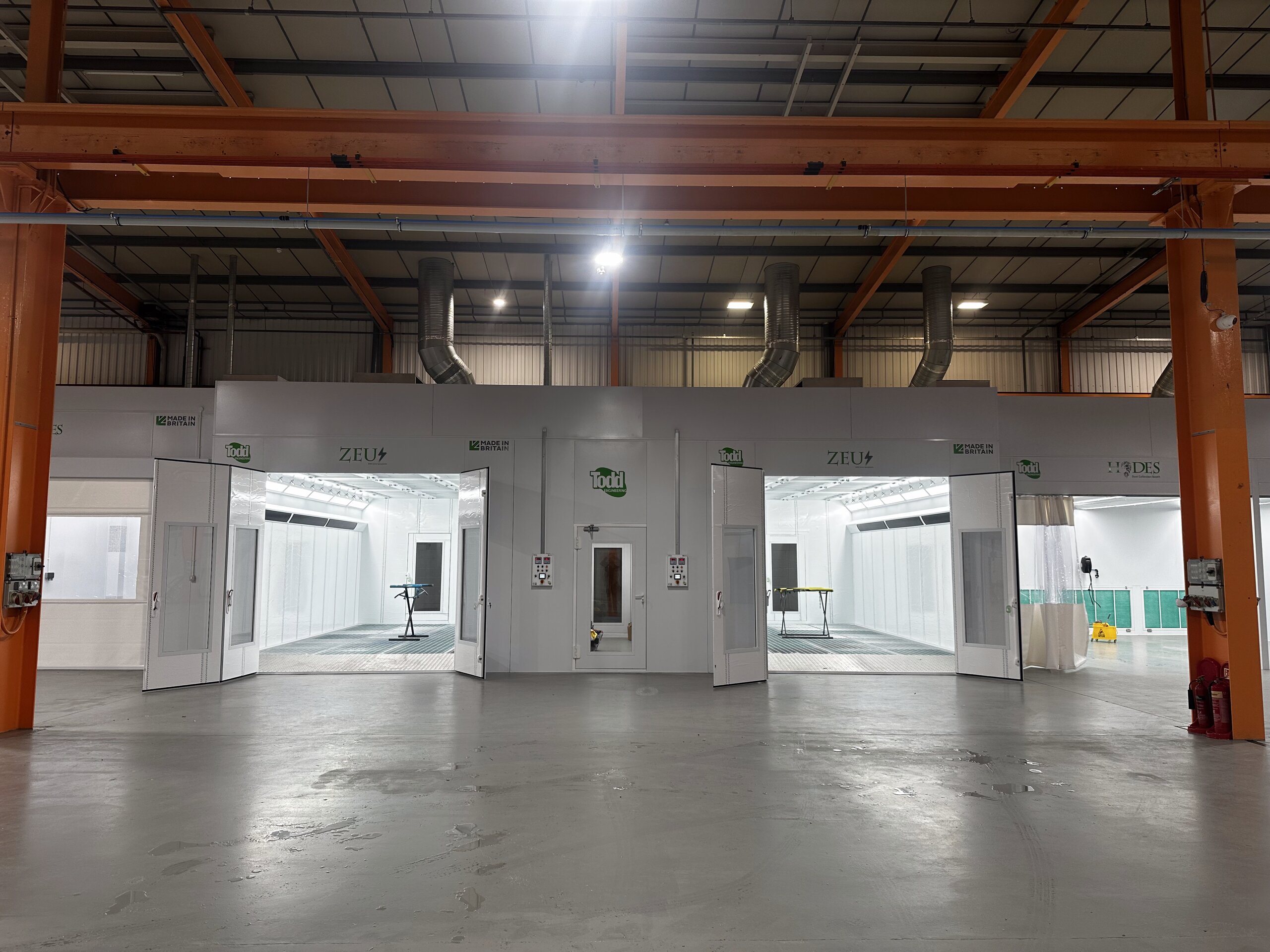

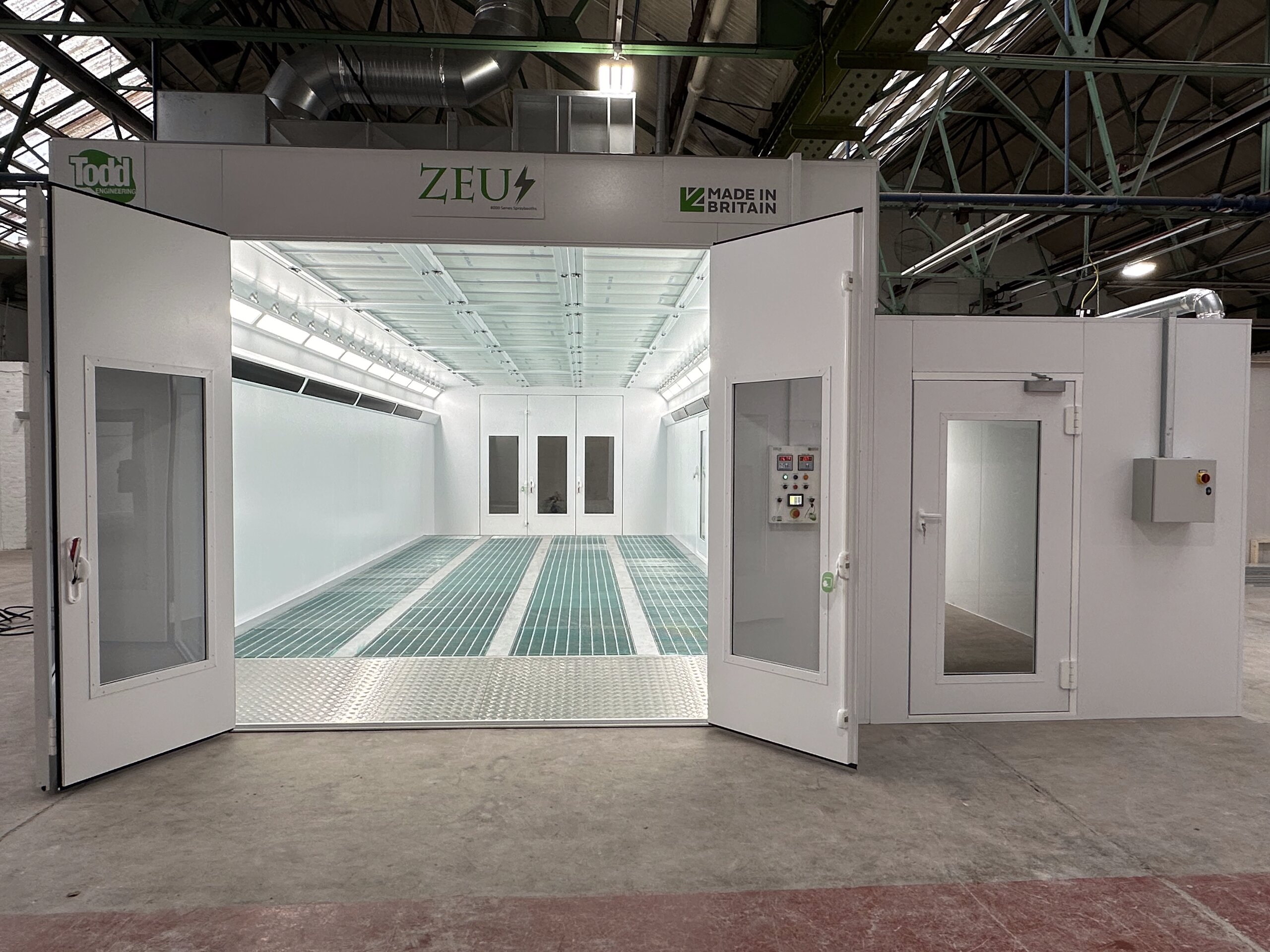

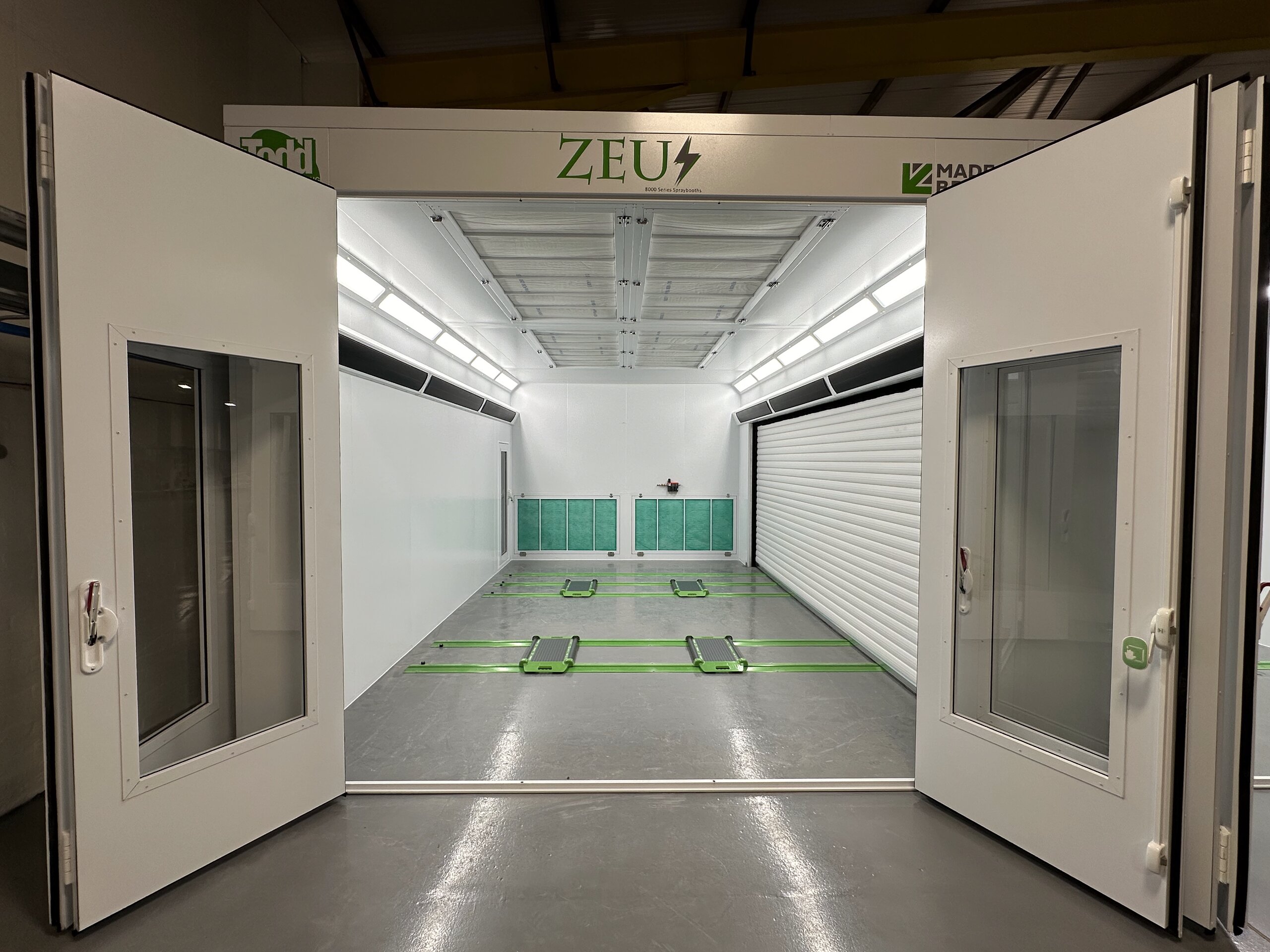

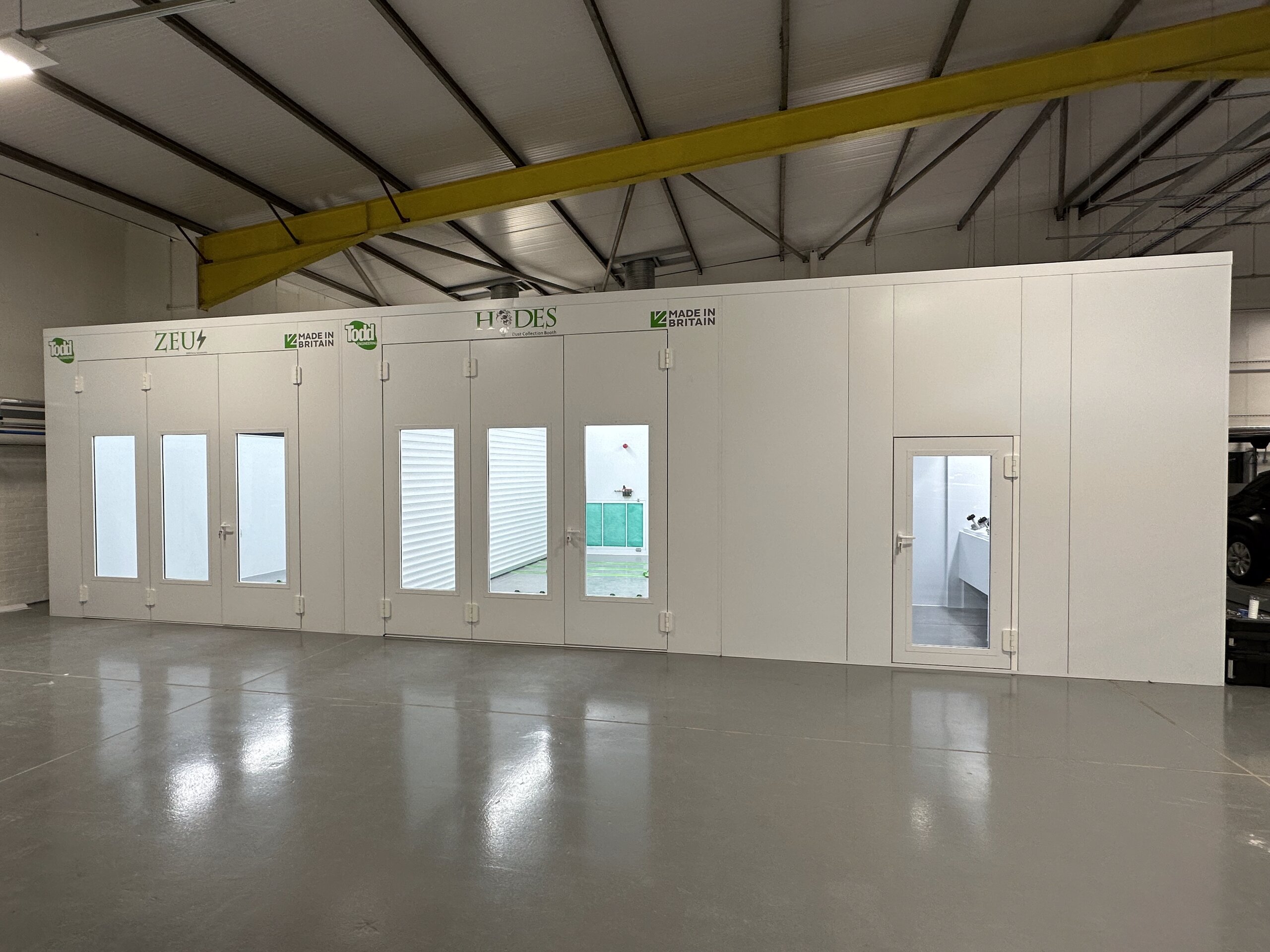

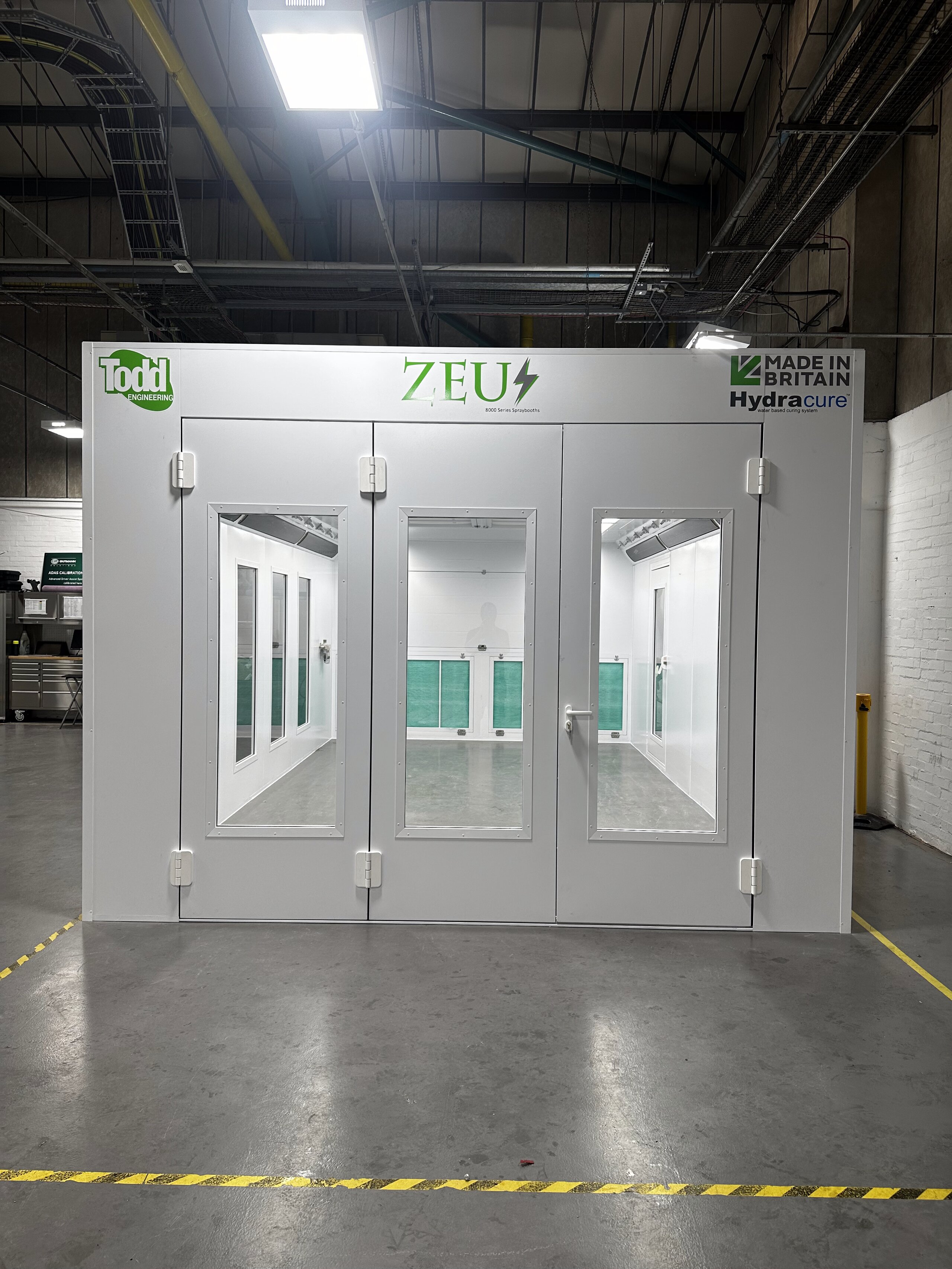

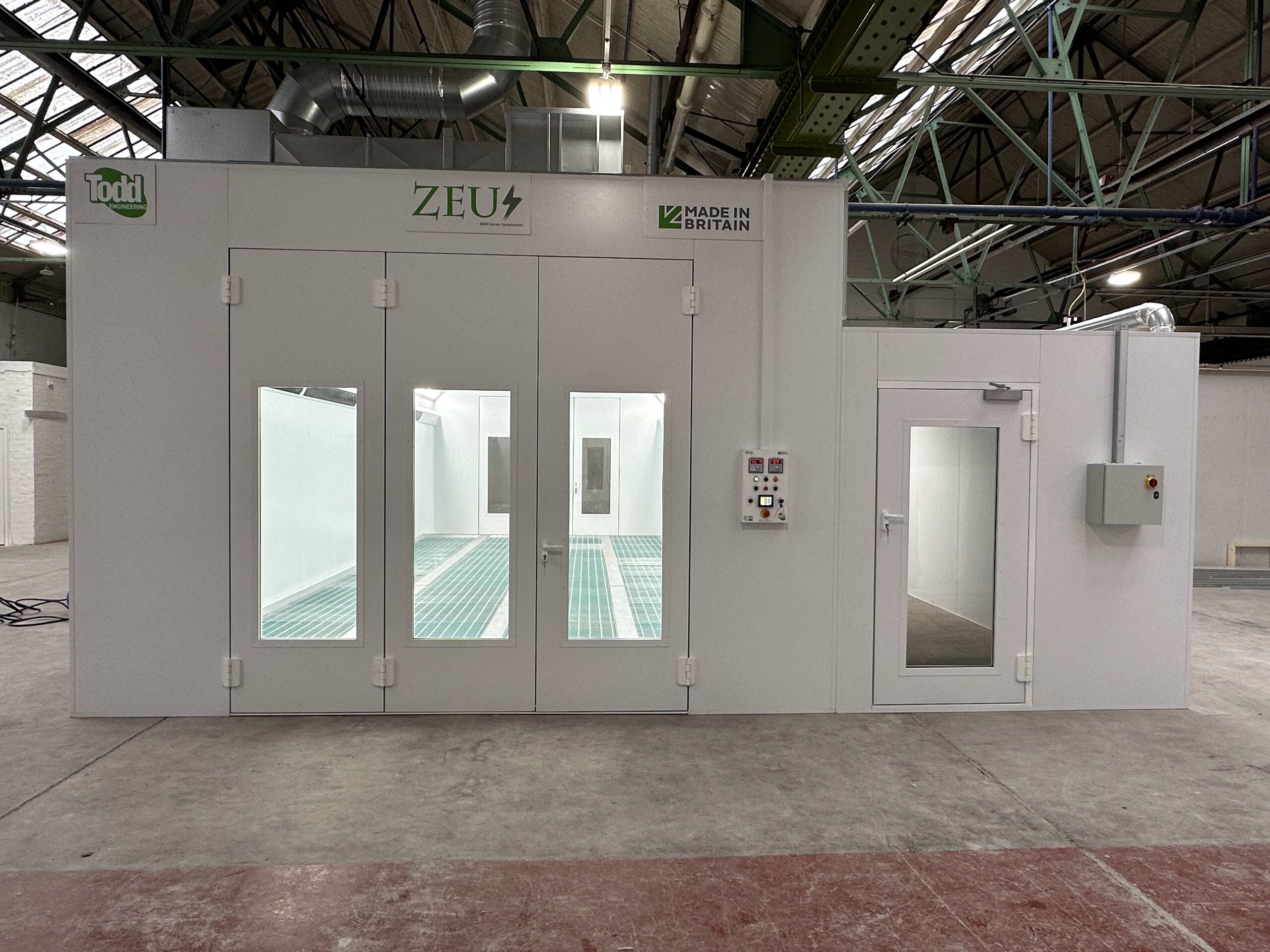

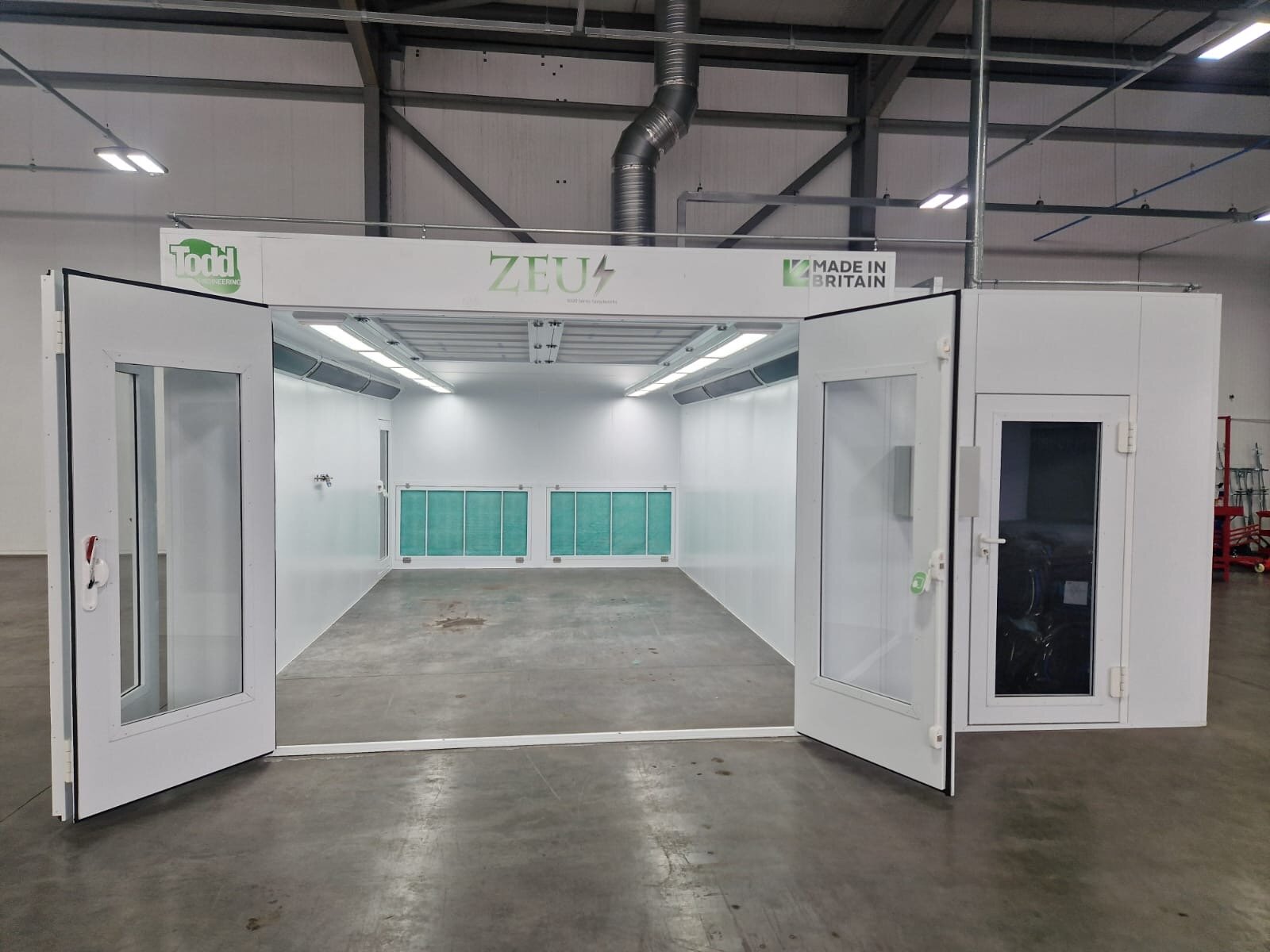

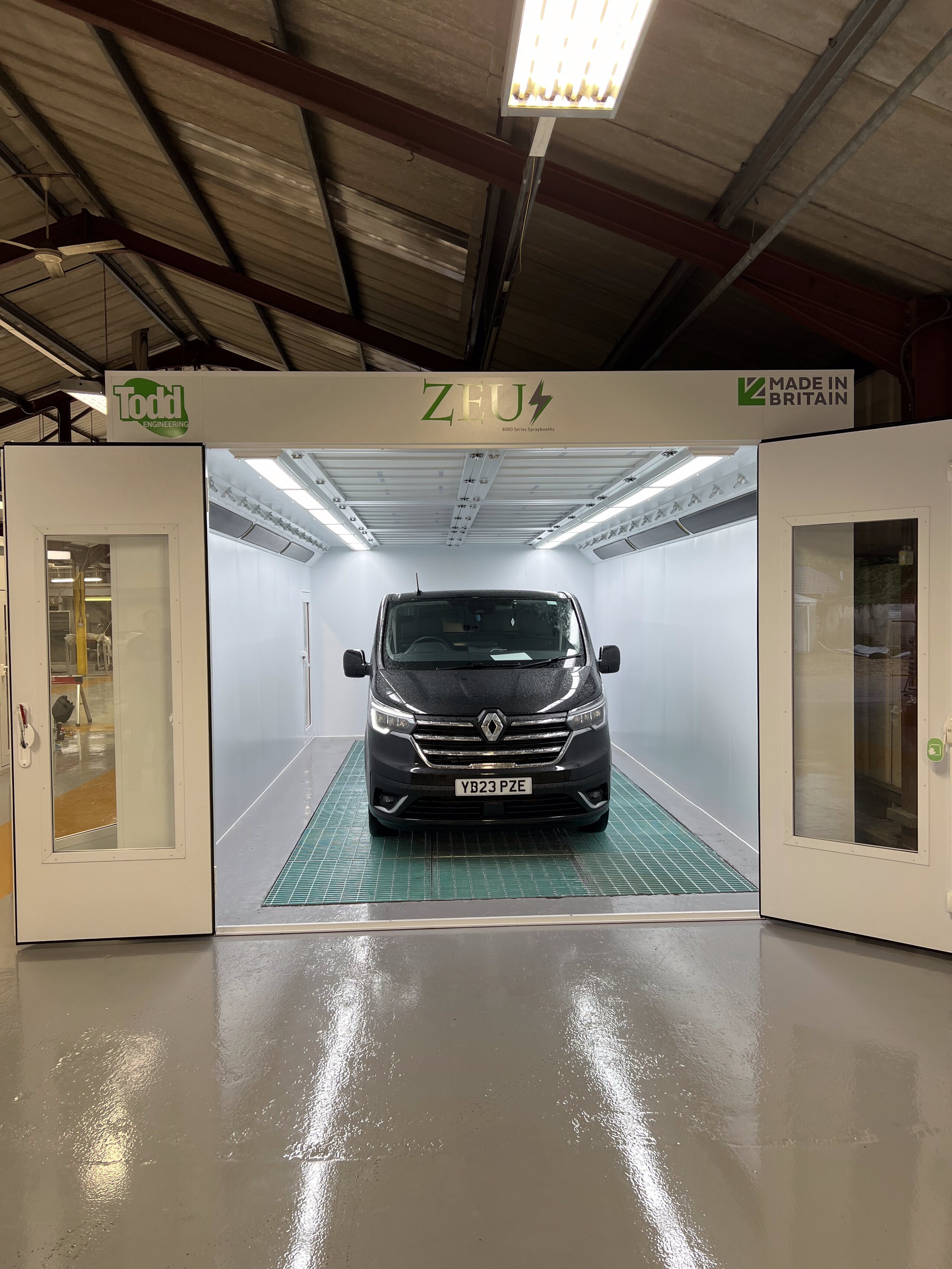

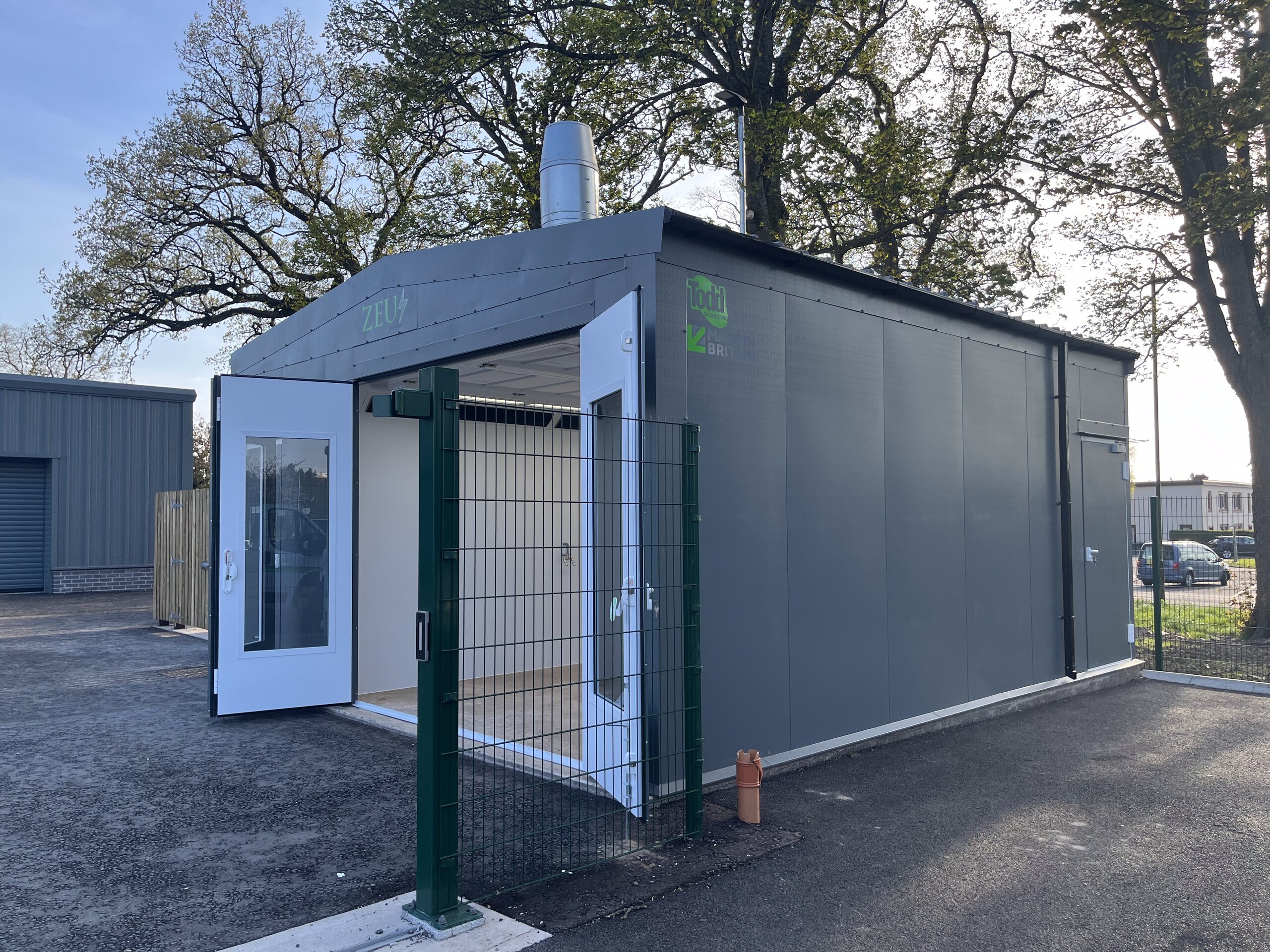

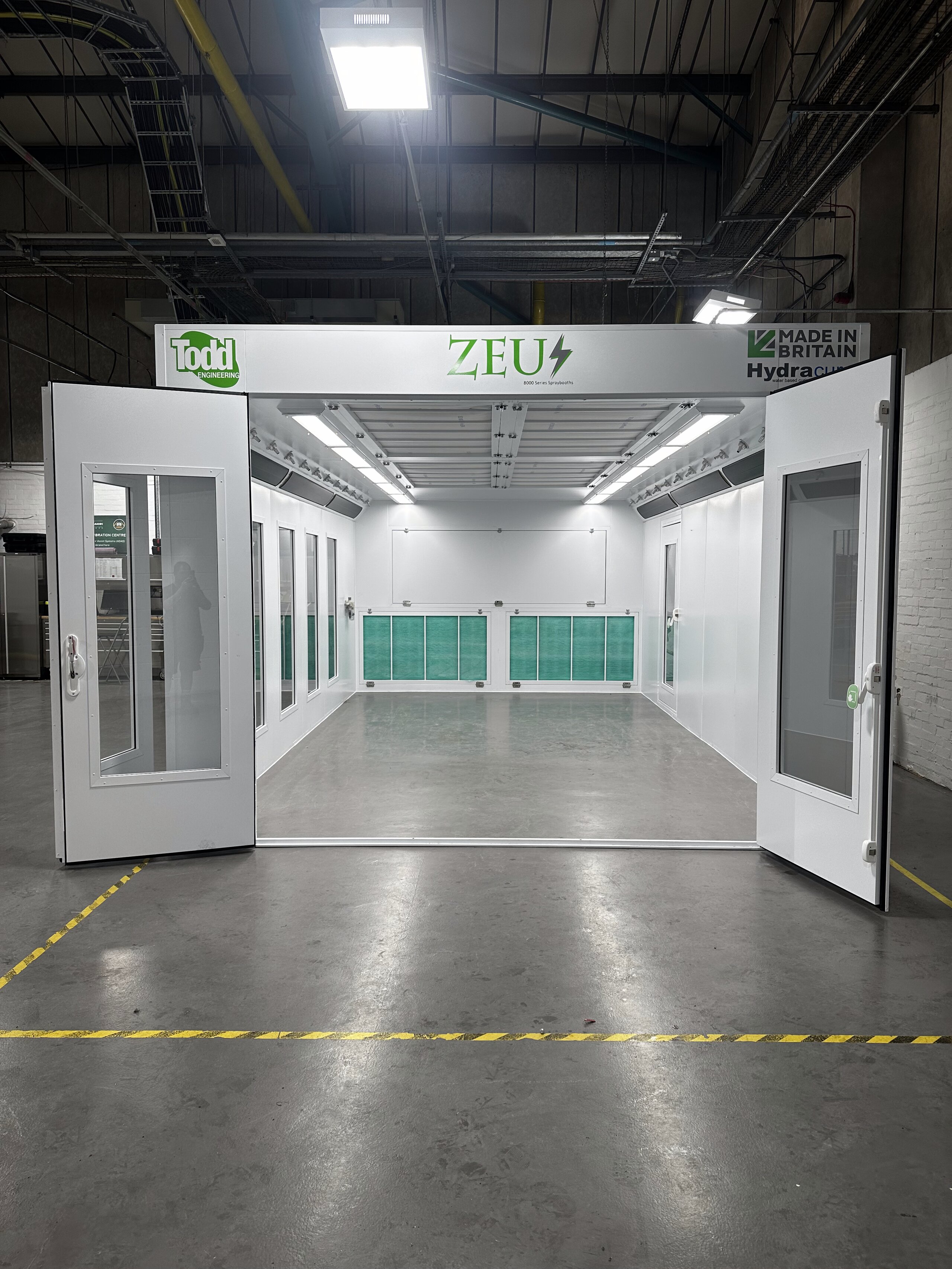

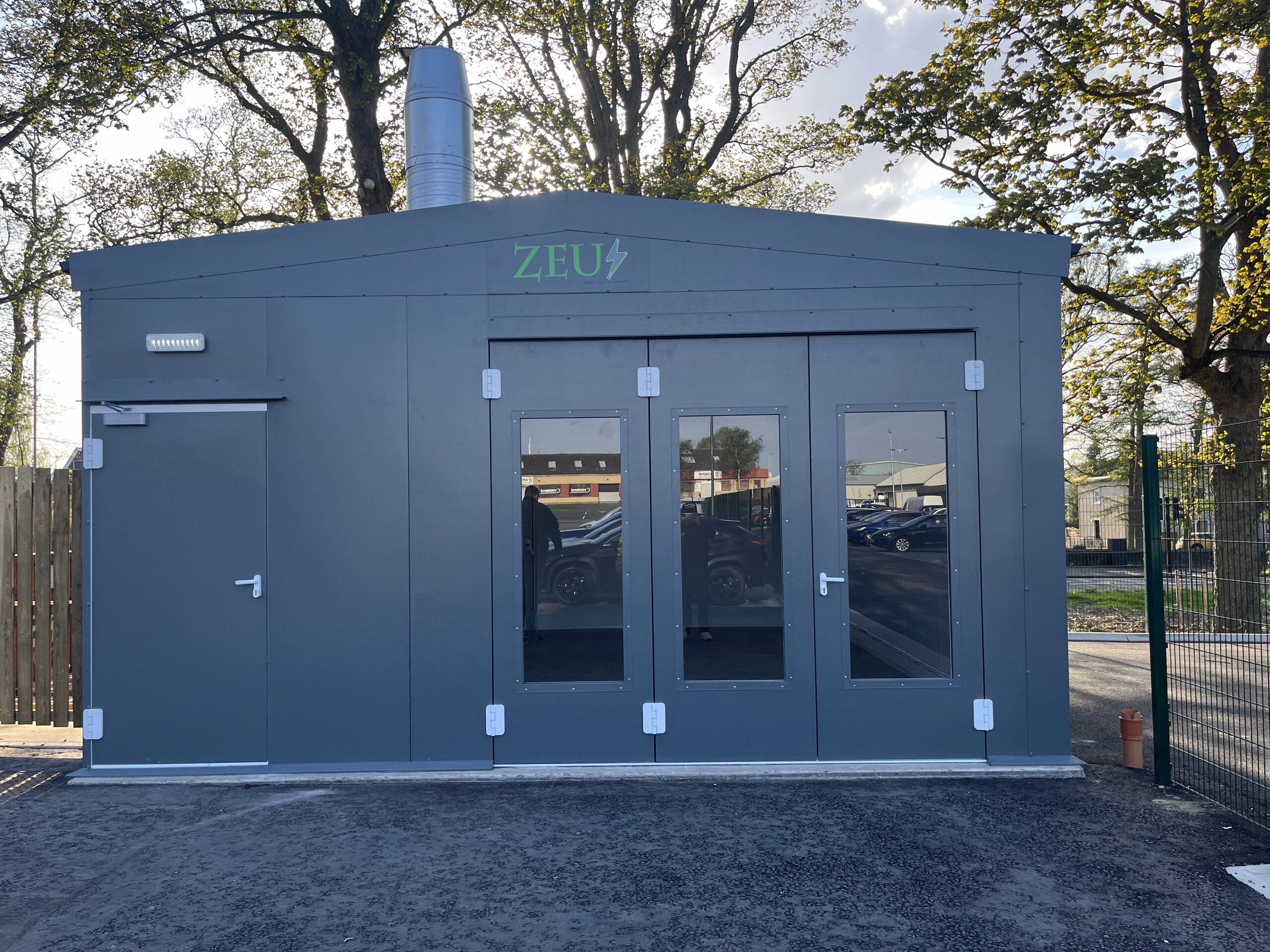

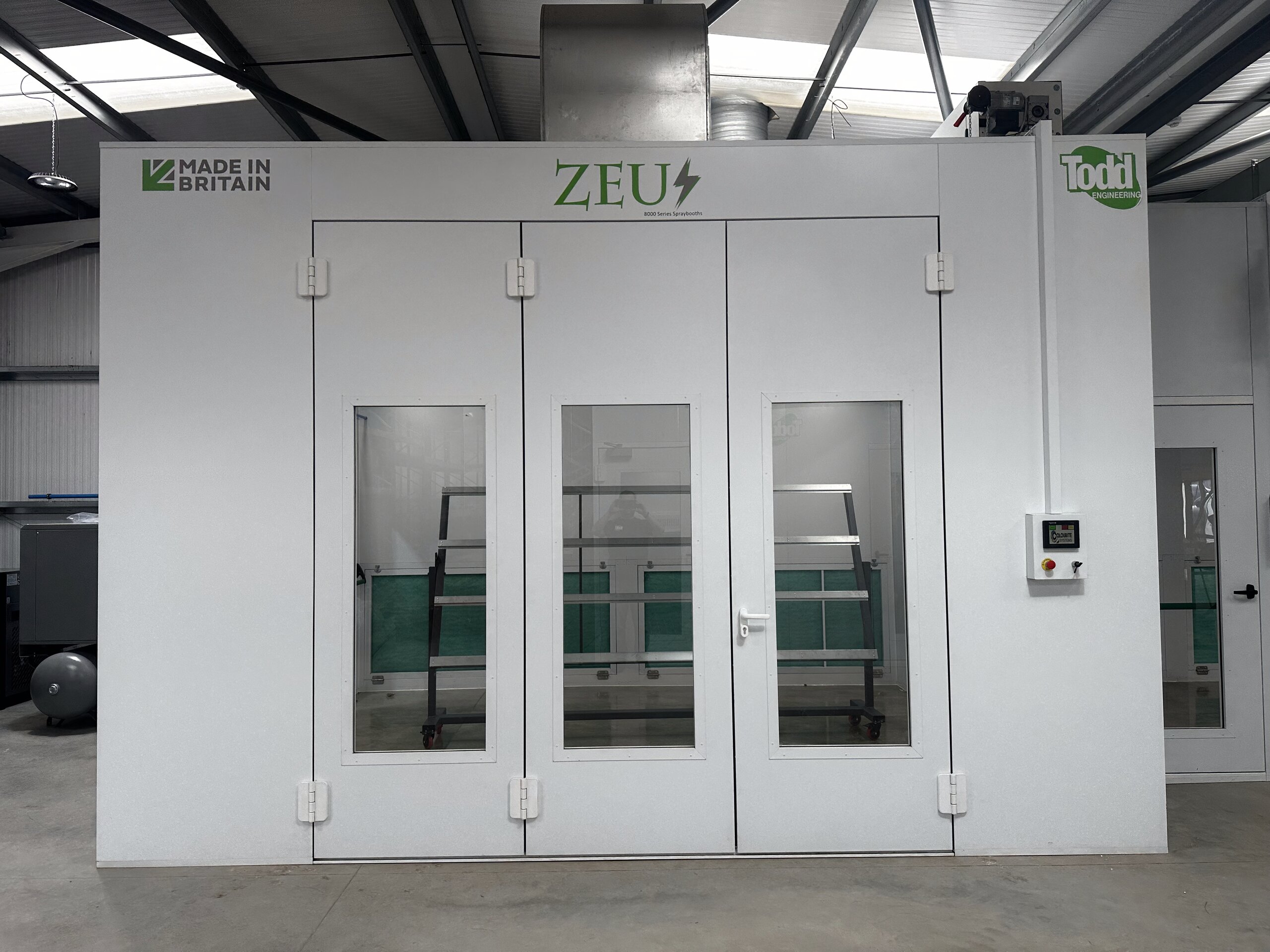

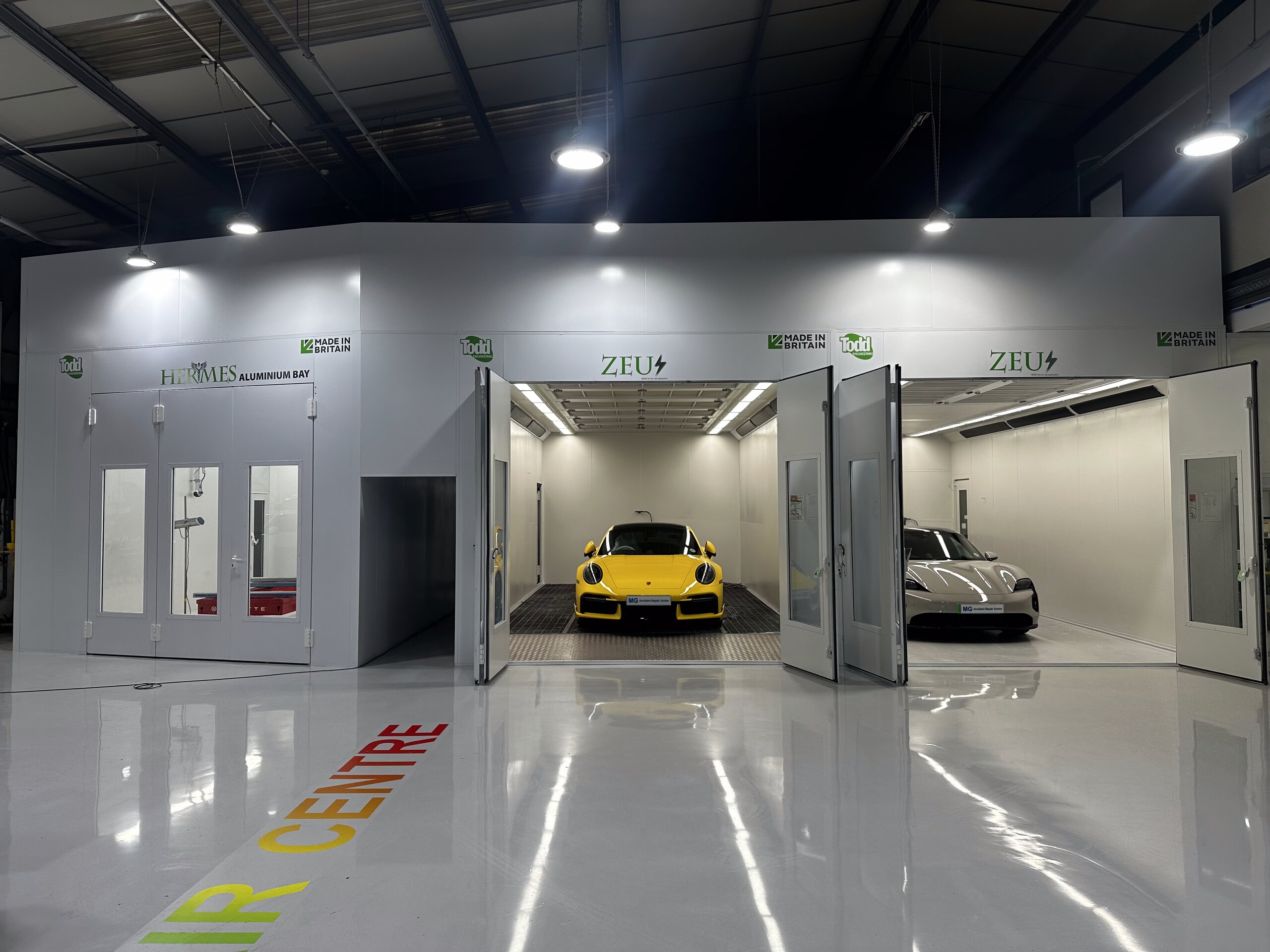

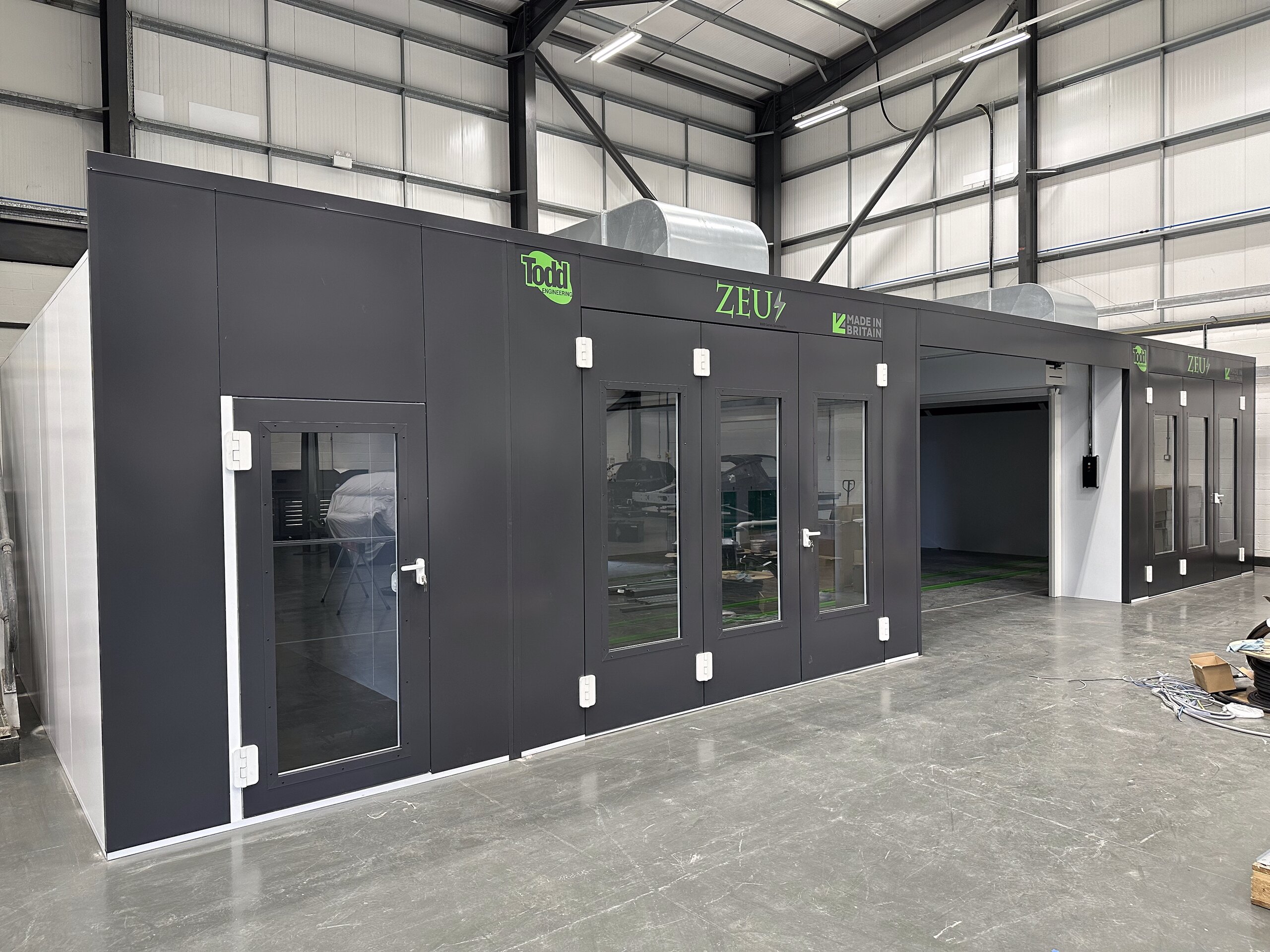

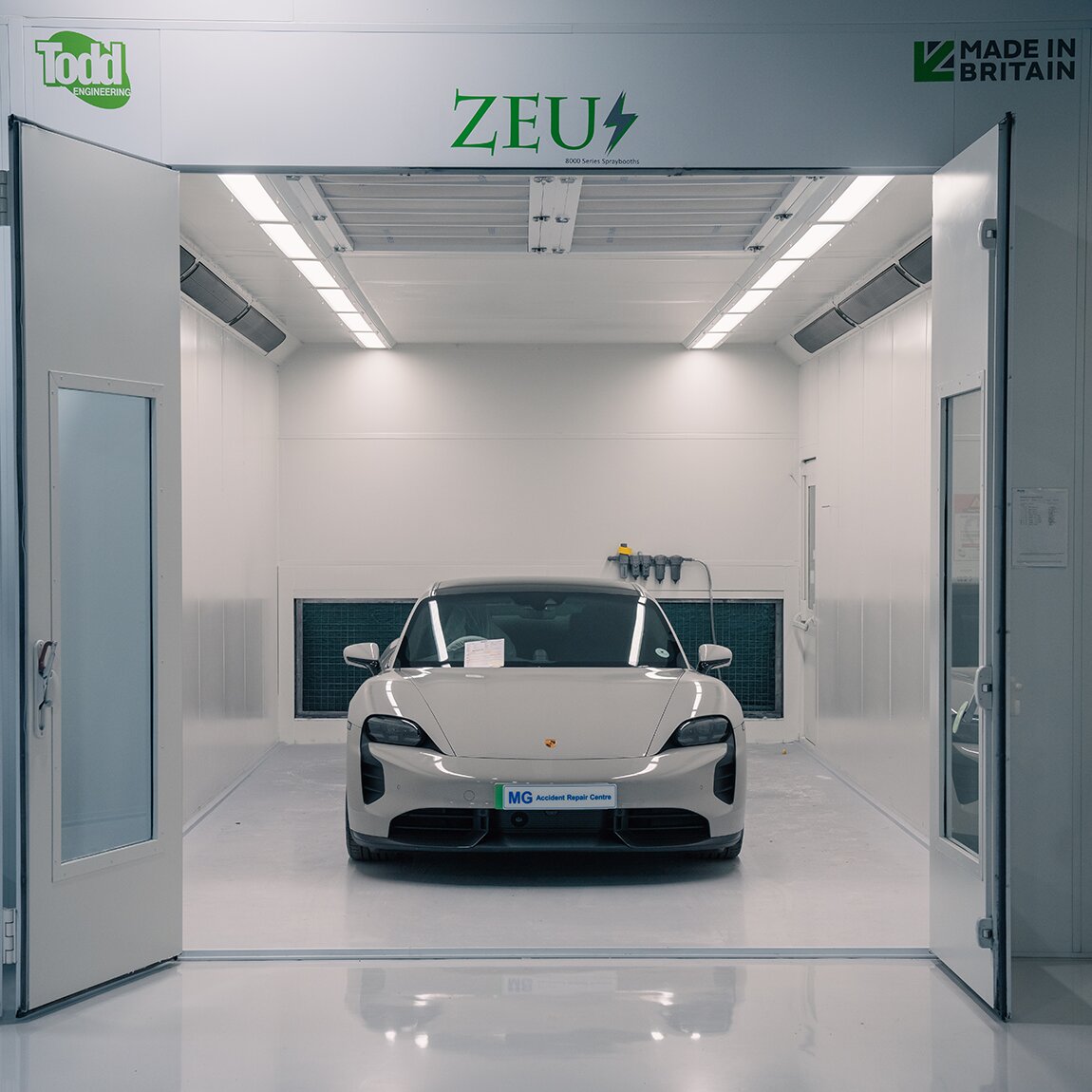

The Zeus 8000 Series is engineered to revolutionise automotive refinishing with far infrared (FIR) curing technology and fully electric operation. Reduce curing times, eliminate fossil fuel dependency and future-proof your bodyshop.
All ElectricFIR CuringZero Fossil Fuels25,000m³/hr+1800 Lux LEDInverter VSDs
Application
Automotive spray finishing
Internal Dimensions
6800mm × 3900mm × 2500mm (L×W×H)
External Dimensions
7400mm × 4000mm × 3700mm (L×W×H)
Power Supply
415VAC 3Ph/N/E (50/60Hz) / 63A
Airflow
25,000m³/hr
Air Changes
5 per minute
Extraction Type
Downdraught / Rear Extract
Fan Type
Direct-drive bifurcated axial / 4kW
Heating
Far Infrared (FIR) electric — zero fossil fuels
FIR Efficiency
98.5% electrically efficient / 75,000hr rated
Noise Level
70–75 dB cabin / 50% lower outbreak
Inverter VSDs
Yes — electronically balanced cabin pressure
LED Lighting
5000K / 90CRI / +1800 lux
Pneumatic Supply
5 bar
Construction
Double-skinned rockwool insulated panels — 30min fire rated
Filtration (Input)
EU5 — contaminants to 10 microns
Filtration (Extract)
Two-stage EU2 + EU3
Control
PLC-based / 3.5" TFT Touchscreen
