Technical SpecificationsPrecision engineering.
Precision engineering.
Every detail.

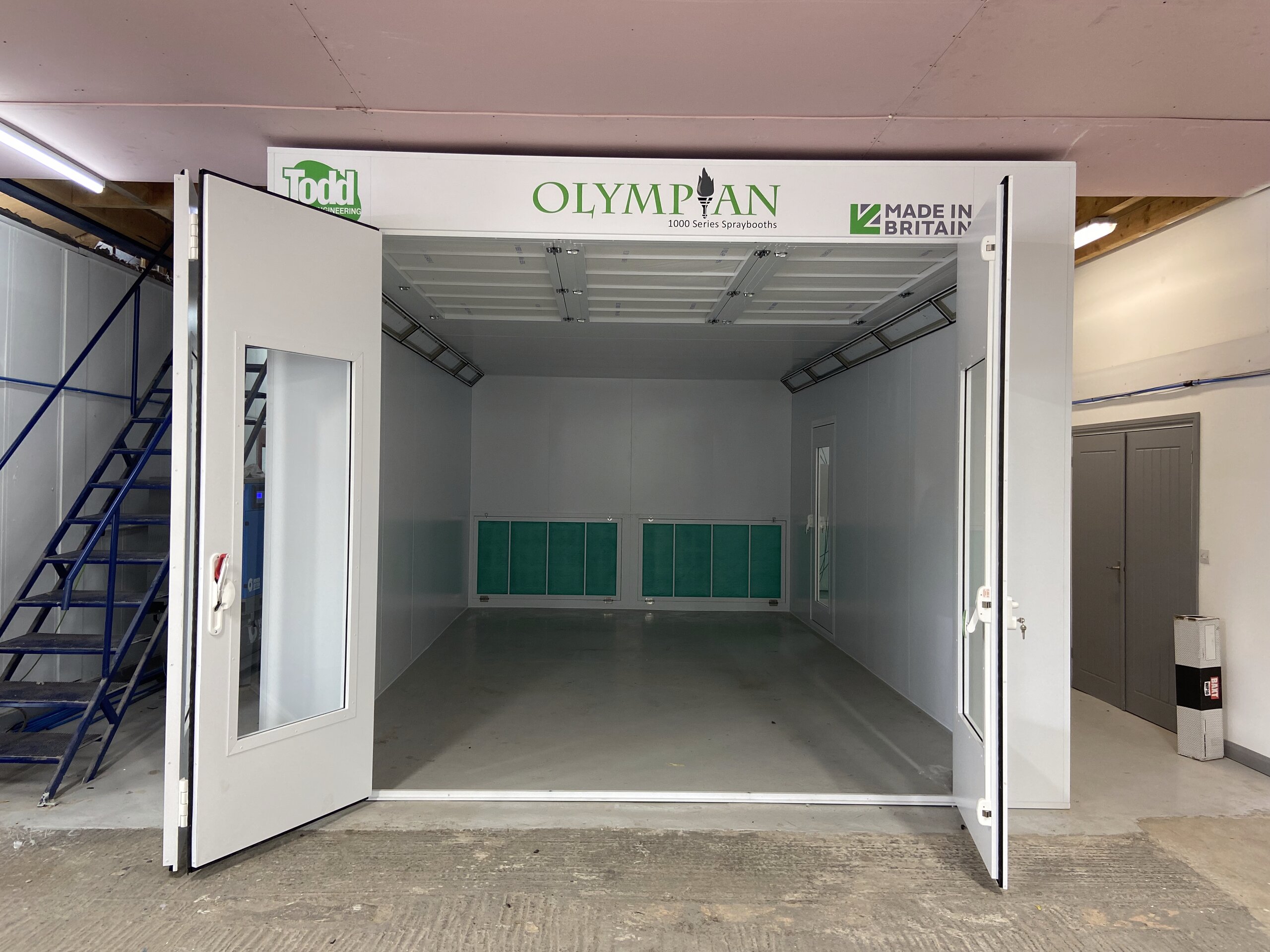

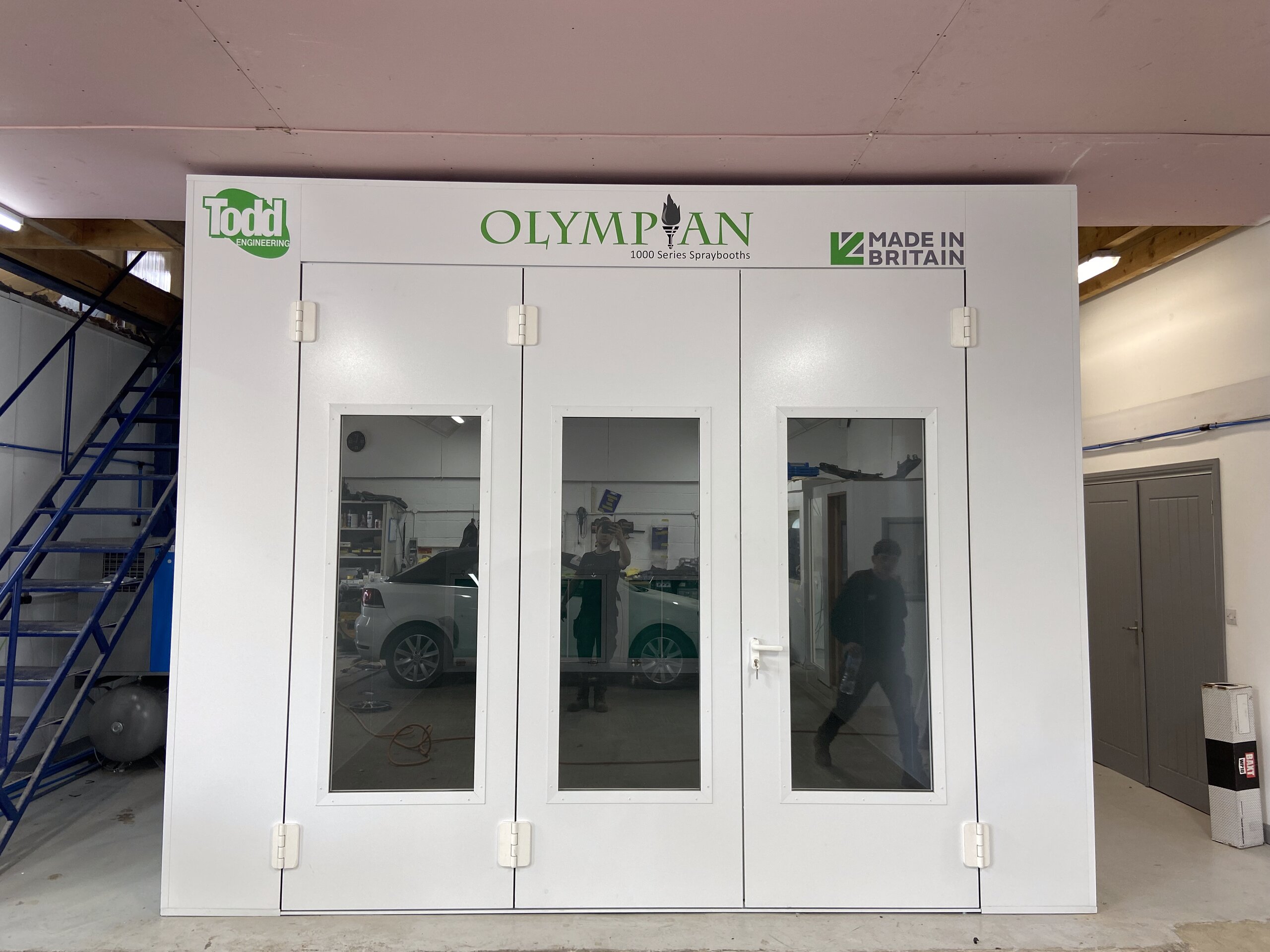

The Olympian 1000 Series delivers high-end features — advanced LED lighting, inverter variable speed drives and waterborne compatibility — at an accessible price point. The ideal choice for growing bodyshops and start-ups.
Entry LevelNo Excavation RequiredWaterborne Compatible14,000m³/hr+1800 Lux LEDOptional Hydracure™
Application
Automotive spray finishing
Internal Dimensions
6750mm × 3900mm × 2600mm (L×W×H)
External Dimensions
7660mm × 4000mm × 3000mm (L×W×H)
High Top LWB (Internal)
7900mm × 3900mm × 3300mm
High Top LWB (External)
8810mm × 4000mm × 3700mm
Power Supply
415VAC 3Ph/N/E (50/60Hz) / 32A
Maximum Absorbed Power
8kW
Gas Supply
Natural Gas or LPG
Gas Rated Power
110kW / 300,000 BTU's/hr
Natural Gas Consumption
9m³/hr
LPG Consumption
5.5kg/hr
Airflow
14,000m³/hr
Air Changes
3.5 per minute
Extraction Type
Rear Extraction
Fan Type
Bifurcated Axial / 3kW
Noise Level
70–75 dB cabin / 50% lower outbreak
Inverter VSDs
Yes — electronically balanced cabin pressure
LED Lighting
5000K / 90CRI / +1800 lux
Pneumatic Supply
5 bar
Construction
Double-skinned insulated panels — 30min fire rated
Paint Compatibility
Waterborne compatible
Optional
Hydracure™ Water-Based Curing System
